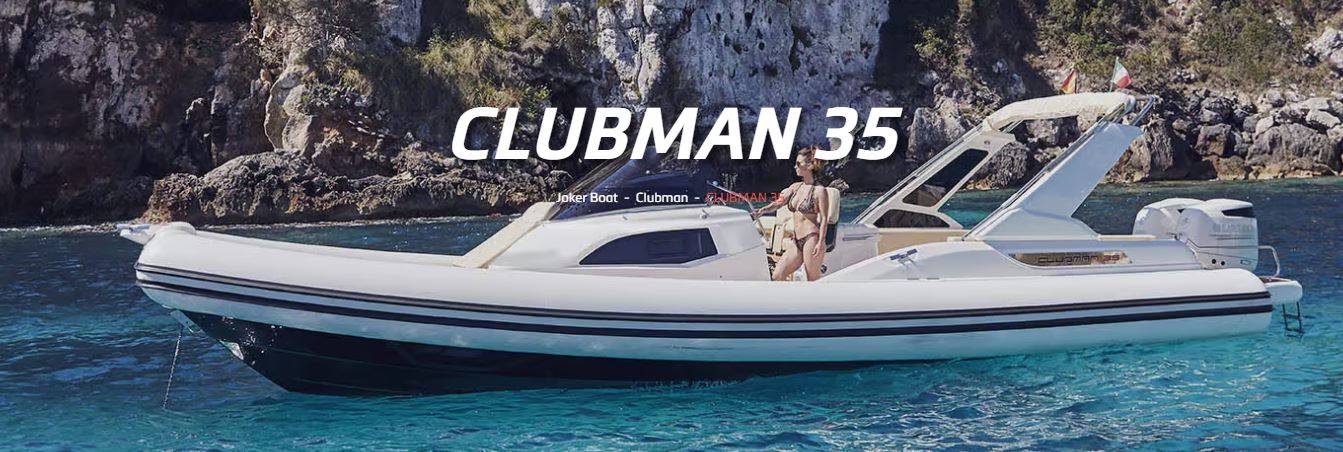

CB - 35 pic

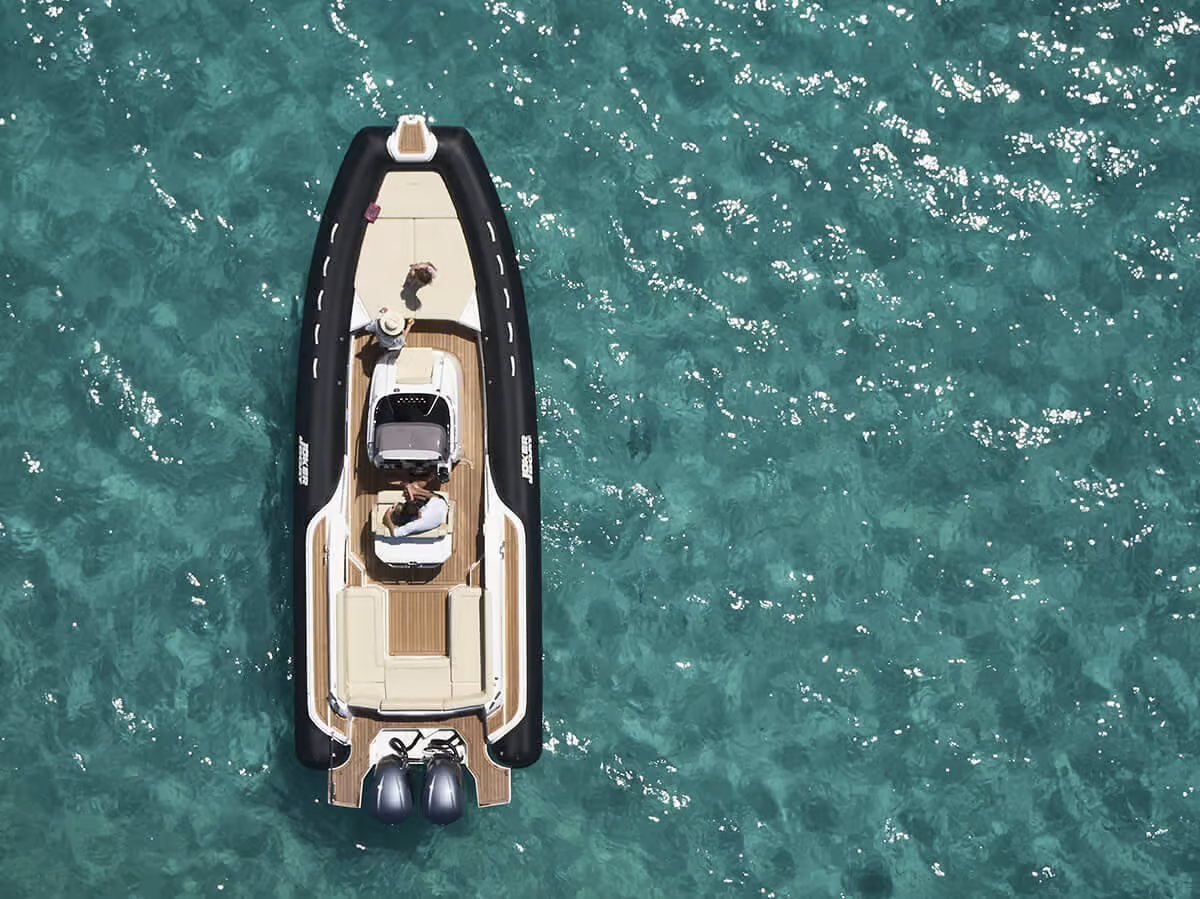

CB30_g12

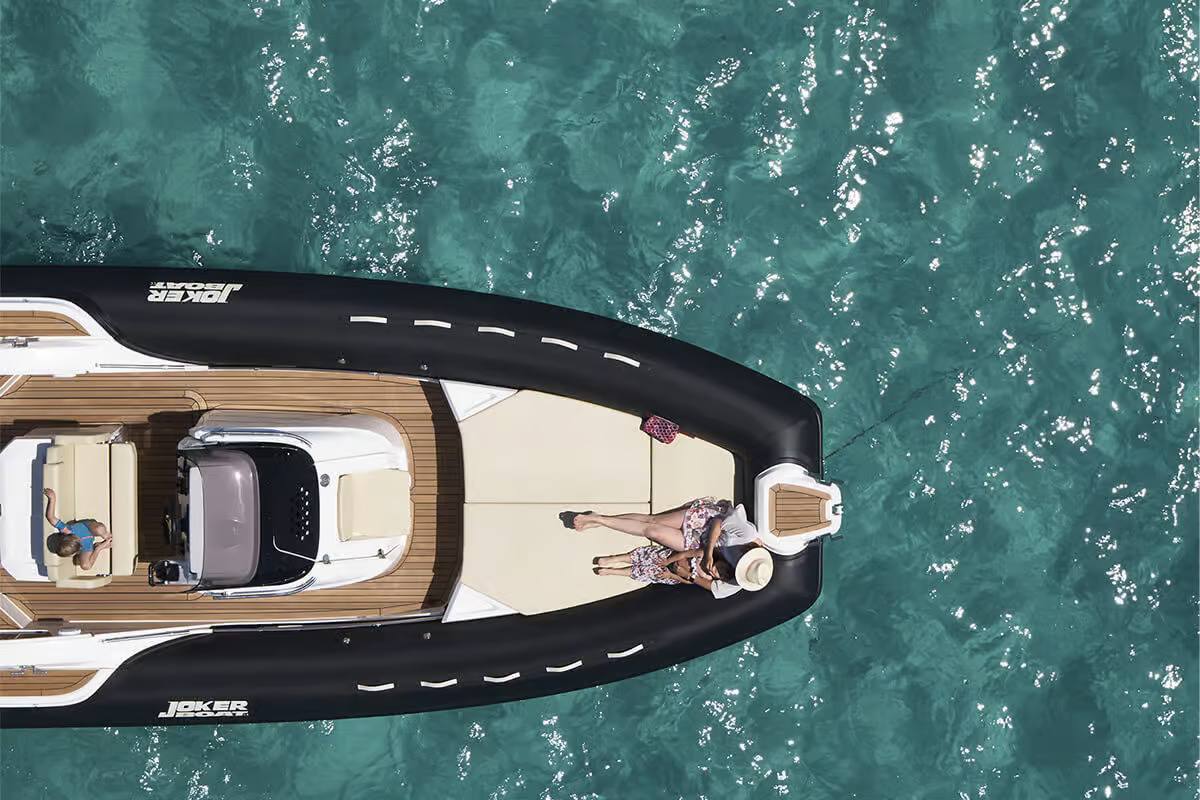

CB30_g11

CB28_g1

CB28_g11

RHIBS

Clubman

CLUBMAN 21

Technical data

> Length all out: 6,20 m
> Max beam (inflated) : 2,50 m
> Deck Length: 5,33 m
> Beam: 1,43 m
> Tubes diameter: 55 cm
> Tubes pressure: 0,30 atm
> Dry weight : 450 kg
> Fuel Tank : 110 lt.
> Water tank : 47 lt.
> Air compartments: 6

> Max people on board: N. 12
> Max engine power: 111Kw (150hp)
> Suggested engine power:
min. 1×80 HP – max 1×150 HP
> Engine Shaft Length: L x 1
> Hull construction material: Fiberglass
> Self draining: No
> Storage areas: N. 6
> Project category : C
> Trailerable: Inflated

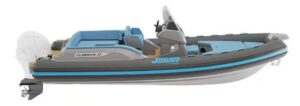

CLUBMAN 22 PLUS

Technical data

> Length all out: 7,01 m
> Certification length: 6,83 m
> Max beam (inflated): 2,77 m
> Deck length: 6,02 m
> Beam: 1,65 m
> Tubes diameter: 54/46 cm
> Tubes pressure: 0,30 atm
> Dry weight: 1.200 kg
> Air compartment : N. 6

> Fuel tank: 210 lt.
>Max people on board: N. 14
> Max motor power: 184 Kw (250 Hp)
> Motor shaft length: XL x 1
> Hull construction material: Vetroresina
> Self draining: Yes
> Storages areas: N. 7/9
> Project category: C
> Trailerable: deflated

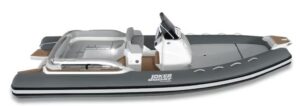

CLUBMAN 24

Technical data

> Length all out: 7,46 m
> CE Certification length: 6,99 m
> Max beam (inflated) : 2,99 m
> Deck Length: 6,40 m
> Beam: 1,70 m
> Tubes diameter: 62 cm
> Tubes pressure: 0,35 atm
> Dry weight: 1.340 Kg
> Air compatments: N. 6
> Draft: 0,47 m
> Max people on board: N. 16

> Max motor power: 221 Kw (300 Hp)
> Suggested motor power:
min. 1×200 Hp – max. 1×300 Hp
> Fuel tank : 300 lt.
> Water tank: 70 lt.
> Motor Shaft Length: XXL x 1
> Hull contruction material: Fiberglass
> Self draining: Sì
> Storage areas: N. 6
> Project category: B
> Trailerable: deflated

CLUBMAN 26

Technical data

>Length all out: 7,93 m
> Max beam (inflated) : 3 m
> Deck Length: 6,80 m
> Beam: 1,70 m
> Tubes diameter: 63 cm
> Tubes pressure: 0,35 atm
> Dry weight: 900 Kg
> Air compatments: N. 6
> Max people on board: N. 22
> Max motor power: 221 Kw (300 Hp)

> Suggested motor power:
min. 1×200 HP / Max 1x300Hp
> Motor Shaft Length: XL x 1
> Draft: : 0,46 m
> Fuel Tank : 380 lt.
> Water tank : 70 lt.
> Hull contruction material: Fiberglass
> Self draining: yes
> Storage areas: N. 6
> Project category : B
> Trailerable: deflated

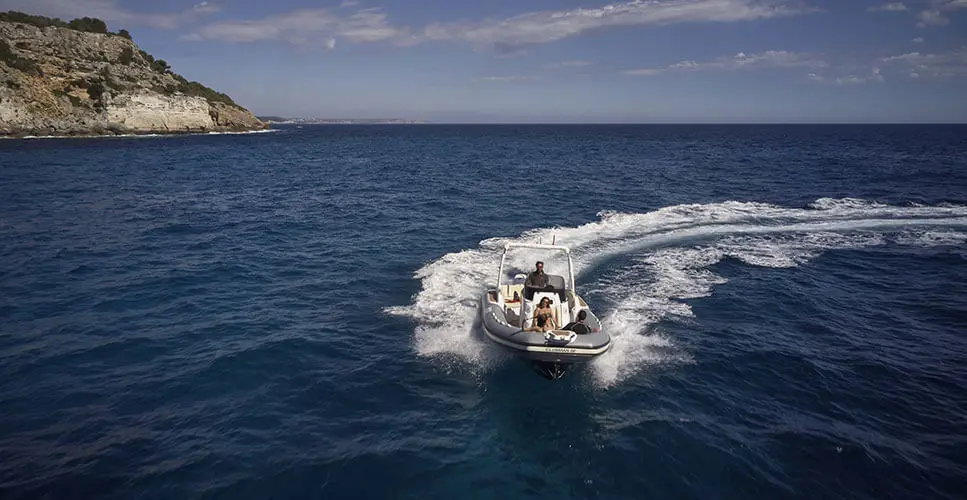

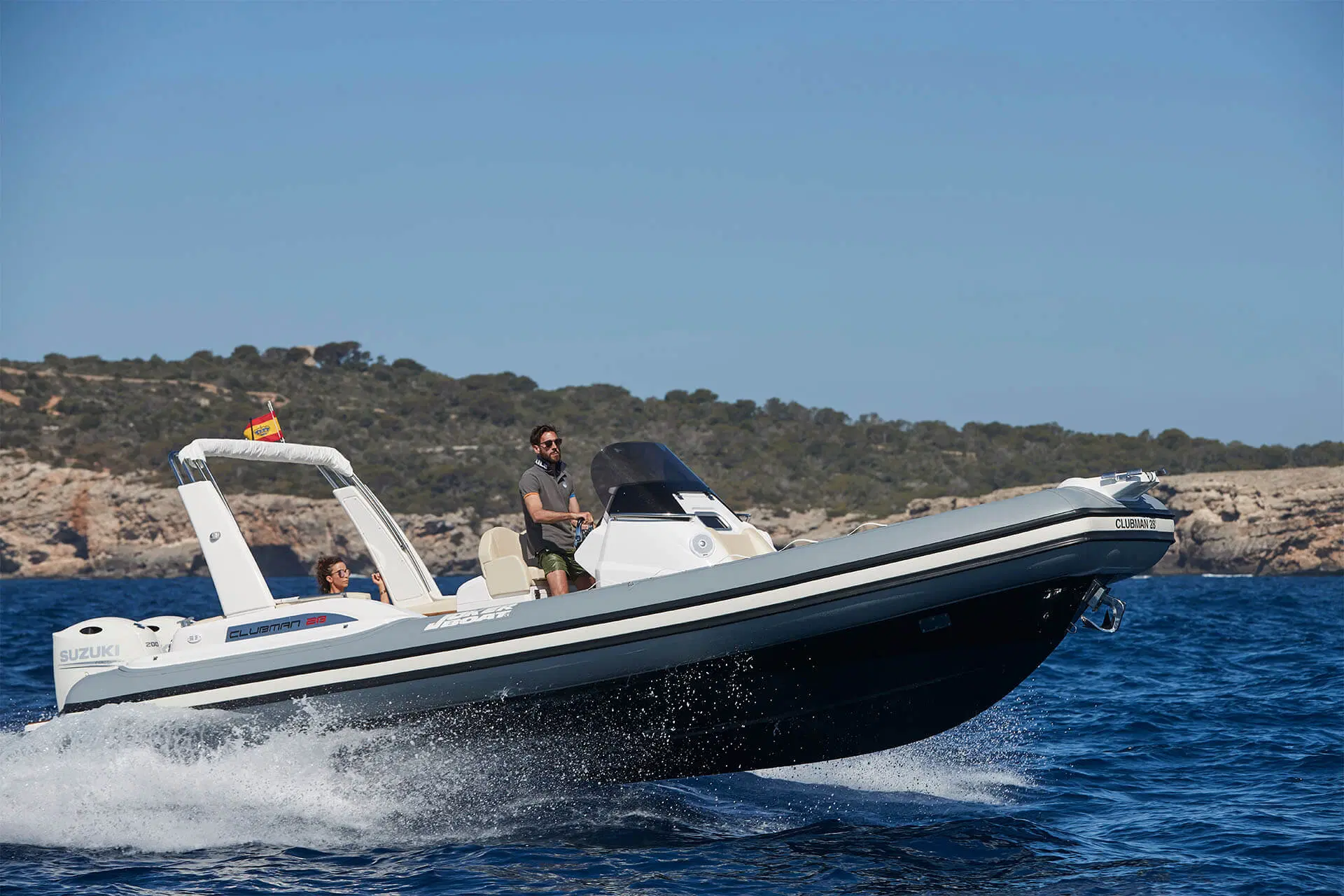

CLUBMAN 28

Technical data

> Length all out: 8,50 m
> CE certification length: 7,99 m
> Max beam (inflated) : 3,15 m
> Deck Length: 7,70 m
> Beam: 1,88 m
> Tubes diameter: 63 cm
> Tubes pressure: 0,35 atm
> Dry weight: 1.800 kg
> Fuel Tank : 400 lt.
> Water tank : 120 lt.
> Black water tank: 56 lt.
> Air compartments: N.6

> Draft: 0,45 m
> Max people on board: N. 16
> Max engine power: 441Kw (600 hp)
> Suggested engine power:
min. 2× 175 Hp –1x 300 Hp
max. 2 x 300 Hp / 1 x 450 Hp
> Engine Shaft Length: XL x 2 – XXL x 1
> Hull construction material: Fiberglass
> Self draining: yes
> Storage areas: N. 6
> Project category : B
> Trailerable: deflated

CLUBMAN 30

Technical data

> Length all out: 9,50 m
> Max beam (inflated) : 3,28 m
> Deck Length: 8,95 m
> Beam: 1,90 m
> Tubes diameter: 62 cm
> Tubes pressure: 0,35 atm
> Dry weight: 2.500 kg
> Fuel Tank : 570 lt.
> Water tank : 140 lt.
> Black water tank : 60 lt.
> Air compartments: 6

> Draft: 0,61 m
> Max people on board: N. 16
> Max engine power: 589Kw (800 hp)
> Suggested engine power:
min. 2× 200 Hp –2x 400 Hp
> Engine Shaft Length: XL x 2
> Hull construction material: Fiberglass
> Self draining: yes
> Storage areas: N. 6
> Project category : B
> Trailerable: deflated

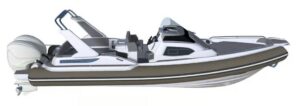

CLUBMAN 32

Technical data

> Length all out: 9,51 m
> CE certificate Length: 9,51 m
> Max beam (inflated): 3,26 m
> Deck Length: 8,95 m
> Beam: 1,90 m
> Tubes diameter: 62 cm
> Tubes pressure: 0,35 atm
> Dry weight: 2.500 Kg
> Air compartments: N. 6
> Max people on board: N. 14
> Max engine power: 590 Kw / 800 Hp

> Suggested engine power:
2×250 Hp /Max. 2×400 Hp
> Engine Shaft Length: XL x 2
> Draft: 0,53 m
> Fuel Tank: 570 lt.
> Water tank: 140 lt.
> Black water tank: 60 lt.
> Hull construction material: Fiberglass
> Self draining: Yes
> Storage areas: N. 4
> Project category: B
> Trailerable: Deflated

CLUBMAN 35

Technical data

> Length all out: 10,70 m
> CE certificate Length: 9,99 m
> Max beam (inflated): 3,52 m
> Deck Length: 9,40 m
> Beam: 2,20 m
> Tubes diameter: 64-65 cm
> Tubes pressure: 0,35 atm
> Dry weight: 3.100 kg
> Air compartments: 6
> Max people on board: N. 16
> Max engine power: 662Kw (900 hp)

> Suggested engine power:
min. 2× 300 Hp –2x 450 Hp
> Engine Shaft Length: XXL x 2
> Draft: 0,62 m
> Fuel Tank: 700 lt.
> Water tank: 120 lt.
> Black water tank: 78 lt.
> Hull construction material: Fiberglass
> Self draining: yes
> Storage areas: N. 8
> Project category : B
> Trailerable: No

Coaster

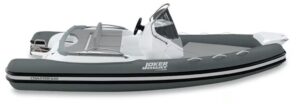

COASTER 520

Technical data

> Length all out: 5,20 m
> Max beam (inflated): 2,58 m
> Deck Length: 4,56 m
> Beam: 1,41 m
> Tubes diameter: 55/40 cm
> Tubes pressure 0,35 atm
> Dry weight: 500 Kg
> Air compartments: N. 4

> Max people on board: N. 8
> Max engine power: 97Kw (130 Hp)
> Engine Shaft Length: L x 1
> Hull construction material: Fiberglass
> Self draining: Yes
> Storage areas: N. 4
> Project category : C
> Trailerable: Inflated

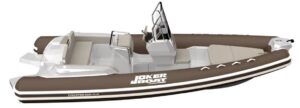

COASTER 580 PLUS

Technical data

> Length all out: 5,85 m
> CE Certification length: 5,85 m
> Deck Length: 5,12 m
> Max Beam (Inflated): 2,54 m
> Beam: 1,38 m
> Tubes diameter: 55-41 cm
> Tubes pressure: 0,30 atm
> Dry weight: 600 Kg
> Fuel Tank: 130 lt.
> Air compartments: N. 6

Max people on board: N. 10

Max motor power: 97 Kw (130 Hp)
Suggested motor power:
min. 40/70 Hp – max 1×130 HP
Motor Shaft Length: L x 1
Hull contruction material: VTR
Self draining: yes
Storage areas: N. 8
Project category: C
Trailerable: inflated

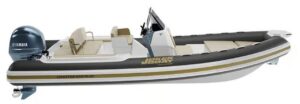

COASTER 650 PLUS

Technical data

> Length all out: 6,90 m
> CE Certification length: 6,57 m
> Deck Length:: 5,60 m
> Max beam (inflated): 2,48 m
> Beam: 1,41 m
> Tubes diameter : 55 cm
> Tubes pressure: 0,30 atm
> Dry weight: 950 Kg
> Fuel tank : 165 lt.
> Air compatments: N. 6

> Max people on board: N. 12

>Max motor power. 147 Kw (200 Hp)
>Suggested motor power:
min. 1×150 Hp – max 1×200 Hp
>Motor Shaft Length: XL x 1
>Hull contruction material: fiberglass
>Self draining: yes
>Storage areas: N. 6
>Project category: C
>Trailerable: Inflated max. 149 Kw (200 Hp)

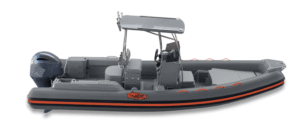

Barracuda

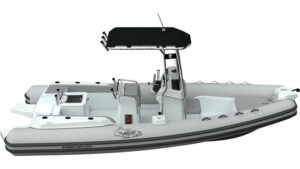

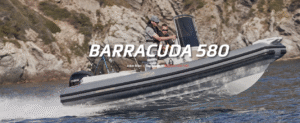

JOKER BOAT BARRACUDA 580

Technical Data

> Length all out:: 5,85 m
> CE Certification length: 5,85 m
> Deck Length: 5,12 m
> Max beam (inflated): 2,54 m
> Beam: 1,38 m
> Tubes diameter : 55-40 cm
> Tubes pressure: 0,30 atm
> Dry weight: 600 Kg
> Fuel tank: 110 lt.
> Air compatments: Nr. 6

- > Max people on board: N. 8
- > Max motor power: 130 Hp
- > Suggested motor power: 80 Hp
- > Motor Shaft Length: L x 1
- > Hull contruction material: Fiberglass
- > Self draining: yes
- > Storage areas: N. 8
- > Project category: C
- > Trailerable: inflated

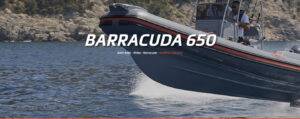

JOKER BOAT BARRACUDA 650

Technical data

> Length all out: 6,70 m
> Max beam (inflated) : 2,55 m
> Deck Length: 5,45 m
> Beam: 1,42 m
> Tubes diameter: 55 cm
> Tubes pressure: 0,30 atm
> Dry weight: 700 kg
> Fuel tank : 170lt.
> Water tank : 72 lt.
> Air compartments: 6

> Draft: 0,41m
> Max people on board: N. 12
> Max engine power: 166 Kw (225 hp)
> Suggested engine power:
Min 150 Hp –1x 225Hp
> Engine Shaft Length: XL x 1
> Hull construction material: Fiberglass
> Self draining: yes
> Storage areas: N. 6
> Project category : C
> Trailerable: inflated
